Best Kitchenaid Dishwasher Install Kit

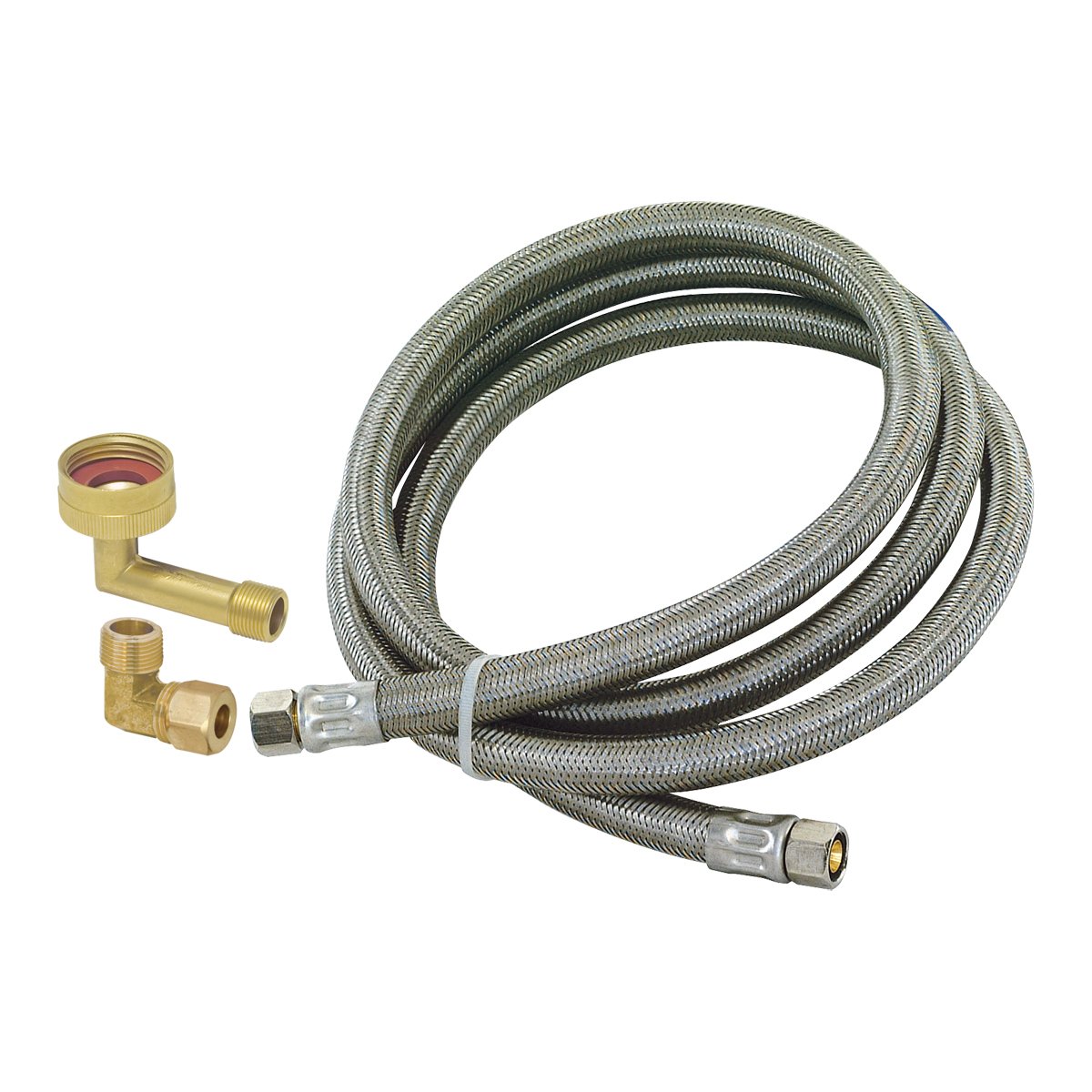

Eastman 8 ft. Stainless steel dishwasher installation kit includes all the necessary connectors to install your new dishwasher. The Supply line features a PVC core, multi-filament braided nylon reinforcement, a clear vinyl outer shell, and a grade 304 stainless steel braided exterior that is designed to prevent kinking and crimping. This kit also includes two elbow connectors. The dishwasher installation kit resists corrosion and is easy to install.

Product Description

EZ FLO braided Stainless Steel Dishwasher Installation Kit comes with all the connectors and fittings required to set up your new dishwasher including a power cord. Its quality is determined by what you can’t see. The supply line features a PVC core, multi-filament braided nylon reinforcement, a clear vinyl outer shell, and a grade 304 stainless steel braided exterior that is designed to prevent punctures, kinking and crimping. This flexible dishwasher connector supply line resists corrosion and is easy to install. It is compatible with all the industry standard Dishwasher brands.

This Dishwasher installation kit is perfect for non-professionals which saves time & effort. This kit comes with
72″ Stainless-steel braided dishwasher connector;
6′ Straight pigtail cord, UL listed;
(3) Yellow plastic wire nuts, #74B, 18-22 gauge;
(1) Stainless-steel hose clamp, #16 -for drain line;
(1) Romex connector

All these supplies make it easy to install.

How to install Dishwasher:
1. Disconnect or unplug all the electric and water line.
2. Slide the new dishwasher grasping it by the sides to avoid denting the front panel.
3. Don’t secure it to the countertop yet. Wait until you make all connections and adjustments.
4. Connect the water line, so it doesn’t leak.
5. With the supply line, the electrical cable and drain connected, turn the power and water back on and check for leaks.
6. Recheck the positioning, then screw the dishwasher to the countertop.

From the Manufacturer

Eastman’s 6′ Stainless Steel Dishwasher Installation Kit comes with all the connectors and fittings required to set up your new dishwasher including a power cord. Its quality is determined by what you can’t see. The supply line features a pvc core, multi-filament braided nylon reinforcement, a clear vinyl outer shell, and a grade 304 stainless steel braided exterior that is designed to prevent kinking and crimping. This flexible supply line resists corrosion and is easy to install.

1) Turn off power to your dishwasher in breaker box (ABSOLUTELY CRITICAL TO AVOID SHOCK) 2) Rotate lower access panel fasteners and remove them 3) Remove access panel/sound dampening pad. Determine if the water supply/power lines have enough slack to move the dishwasher. If not, you will need to turn off water supply valve, disconnect water supply line from inlet valve & release power line from junction box 4) Open dishwasher door, remove the screws from the existing brackets (if present) 5) You will next be moving the dishwasher. To do so, you may need to lower the dishwasher by adjusting the leveling legs 6) Carefully pull dishwasher a few inches away from the front of the cabinet 7) Use pliers to pull up tabs in back of the bracket (if present). Pull out old brackets 8) Insert new brackets. Use pliers to adjust the back tab to lock the brackets in place 9) Slide the dishwasher back into the cabinet (readjusting the leveling legs, if necessary). Replace the screws in your new brackets 10) Reverse steps 3, 2 and 1. ALL SET! This is a generic product manufactured and distributed by Impresa Products (TM). This is not a Whirlpool (TM), Sears (TM), Kenmore (TM), Amana (TM), Jenn-Air (TM), Crosley (TM), Maytag (TM), Roper (TM), Magic Chef (TM), Estate (TM) or Inglis (TM) OEM product and Impresa Products has no affiliation with or endorsement from these brands. Our product is not covered under any other manufacturer’s warranty (except for Impresa Products). The Whirlpool (TM), Sears (TM), Kenmore (TM), Amana (TM), Jenn-Air (TM), Crosley (TM), Maytag (TM), Roper (TM), Magic Chef (TM), Estate (TM) and Inglis (TM) brand names and logos are the registered trademarks of their owners. Any use of the Whirlpool (TM), Sears (TM), Kenmore (TM), Amana (TM), Jenn-Air (TM), Crosley (TM), Maytag (TM), Roper (TM), Magic Chef (TM), Estate (TM) and Inglis (TM) brand names, model or any other related designations are made solely for purposes of describing and illustrating compatibility.

Product Description

This 3-prong dishwasher power supply kit fits most major brands and includes everything you need for easy installation. The kit contains (1) 6 feet dishwasher 90 Degree power cord, (1) metal strain relief, (3) wire nuts and installation instructions. This kit is for close clearance connections. The strain relief is for added safety.

From the Manufacturer

This 3-prong dishwasher power supply kit fits most major brands and includes everything you need for easy installation. The kit contains (1) 6 feet dishwasher 90 Degree power cord, (1) metal strain relief, (3) wire nuts, and installation instructions. This kit is for close clearance connections. The strain relief is for added safety.

Can fit any style of dishwasher as kit comes with 2 different styles of water line fittings. Hose style and 1/4 line style. 7 Foot long stainless steel line for water leak free worries. All items are flexible and easy to install. Includes teflon tape for fittings to easily apply to unit. Includes wiring for either a power cord hook up or a direct hook up as wire nuts are provided. Hose clamps are also provided for bigger hose styles. Electrical clamp is included for securing unit to power supply.

Product Description

The EZ-FLO 48336 Dishwasher Installation kit is a universal kit which fits major dishwasher brands. The water connector of the kit measures 6 ft in length. The corrosion-resistant supply line features a PVC core, multi-filament braided nylon reinforcement, a clear vinyl outer shell and a grade 304 stainless steel braided exterior which is designed to prevent kinking, crimping and leaks. The braided surface enhances its design providing a modern look to your household. It includes hardware and fittings like hose thread and male pipe thread, hose clamp for drain hose and 3 wire nuts.

The additional fittings included in the kit makes it easy to install without any hassle.

From the Manufacturer

Eastman’s 6′ Stainless Steel Dishwasher Installation Kit comes with all the connectors and fittings required to set up your new dishwasher. Its quality is determined by what you can’t see. The supply line features a pvc core, multi-filament braided nylon reinforcement, a clear vinyl outer shell, and a grade 304 stainless steel braided exterior that is designed to prevent kinking and crimping. This flexible supply line resists corrosion and is easy to install.

SPECIFICATIONS

This door cable kit (part number 8194001) is for dishwashers. Door cable kit 8194001 helps balance and support the weight of the door as it opens and closes. The kit may include multiple parts; refer to your parts diagram for a complete list of parts included. Unplug the dishwasher or shut off the house circuit breaker before installing this part. Wear work gloves to protect your hands.

Replaces part numbers: AP3775412, W10158291, 8535568, 8270021, 8524474, 8270022, 1059756, 8270015, 8270018, AH972325, EA972325, ERW10158291, PS972325.

Works with most top name brands: Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper.

Count on our 8194001 Dishwasher Door Link Kit Replacement part for an unrivaled mix of durability, convenient functionality, and great value for money. Click ‘Add to Cart’ now!

Replaces the following part numbers:
WP8269145, WP8269145VP.

Works for brands:
KitchenAid, Whirlpool, Kenmore, Maytag, Jenn-Air, Amana, Estate, Magic Chef, Inglis, Crosley, Roper.

Fixes problem with:
Door latch failure.
Door won’t close.

Contact Us
If you are not sure if part is correct, ask us in Customer questions & answers section or contact us by visiting the Discount Parts Direct storefront.

Business Wholesale
We are a small local company from Houston, Texas offer discount parts for retail and wholesale. If you need to purchase parts for business , please contact us for lower rates.

Comparable to OEM Parts include WP8269145, 8269145, EA393134, AP3039168, PS393134, 830941, AH393134 and many more.

FIXES THE FOLLOWING SYMPTOMS:
Door latch failure.
Door won’t close.

INSTRUCTIONS:
1. Turn off the power and water supply to avoid shock.
2. Open the dishwasher door and use a phillips screw driver to remove the screws that hold the dishwasher to the cabinet.
3. Close the dishwasher door and use it to pull the dishwasher out from the counter top. You only need to pull out far enough to expose the brackets.
4. The undercounter brackets are held in by the bent tabs on the bracket that hold the bracket in place. Straighten out the tabs and slide the bracket out.
5. Slide the dishwasher brackets into the same area you removed the original brackets and bend the tabs to secure the brackets to the dishwasher.
6. Finish by carefully sliding your dishwasher back under the cabinet. Use your provided screws to screw the dishwasher bracket directly to the underside of your counter with a Phillips screwdriver.

WHAT YOU GET:
2 x Dishwasher Mounting Brackets
2 x Mounting Screws

100% CUSTOMER SATISFACTION :
Feel free to contact us if you have any questions or problems with the item

The rack adjuster makes it possible for you to move your top dish rack up or down. This way, you can make room for larger items. When any component of your adjuster breaks, you need to replace the whole adjuster. The PartsBroz dishwasher rack adjuster kit directly replaces part W10712394. Its upgraded metal and plastic design offers long-lasting durability and corrosion resistance. Use it with several Whirlpool and Kenmore brand dishwashers.

Simple DIY Fix

This repair takes just 10 to 15 minutes of your time and it can help solve the following problems:

• Door won’t close
• Dishwasher leaks
• Dishwasher doesn’t clean the dishes properly
• Wash cycle won’t start

Compatible brands include: Kitchenaid, Kenmore, Whirlpool, and Jenn-Air.

Compatible models include but are not limited to: 66513042K110, 66513042K111, 66513042K112, 66513042K113, and 66513042K114.

Replaces Several Part Numbers

The same functional part often goes by several names. This PartsBroz replacement part directly replaces part numbers W10712394, W10238418, W10253546, W10712394, W10712394VP, AP5956100, W10350376, PS10064063, B00SPYDSFC, B0057DC9GS, B008DJOUYM, B0123NGB5O, B00A8O0FG2, B01DKTARHI, and B011C4Q6QY.

Please reach out to us if you have a question about compatibility. Comment below in the customer questions and answer section, or send us a message on the PartsBroz storefront. We’re happy to help ensure you select the right part number for your dishwasher.

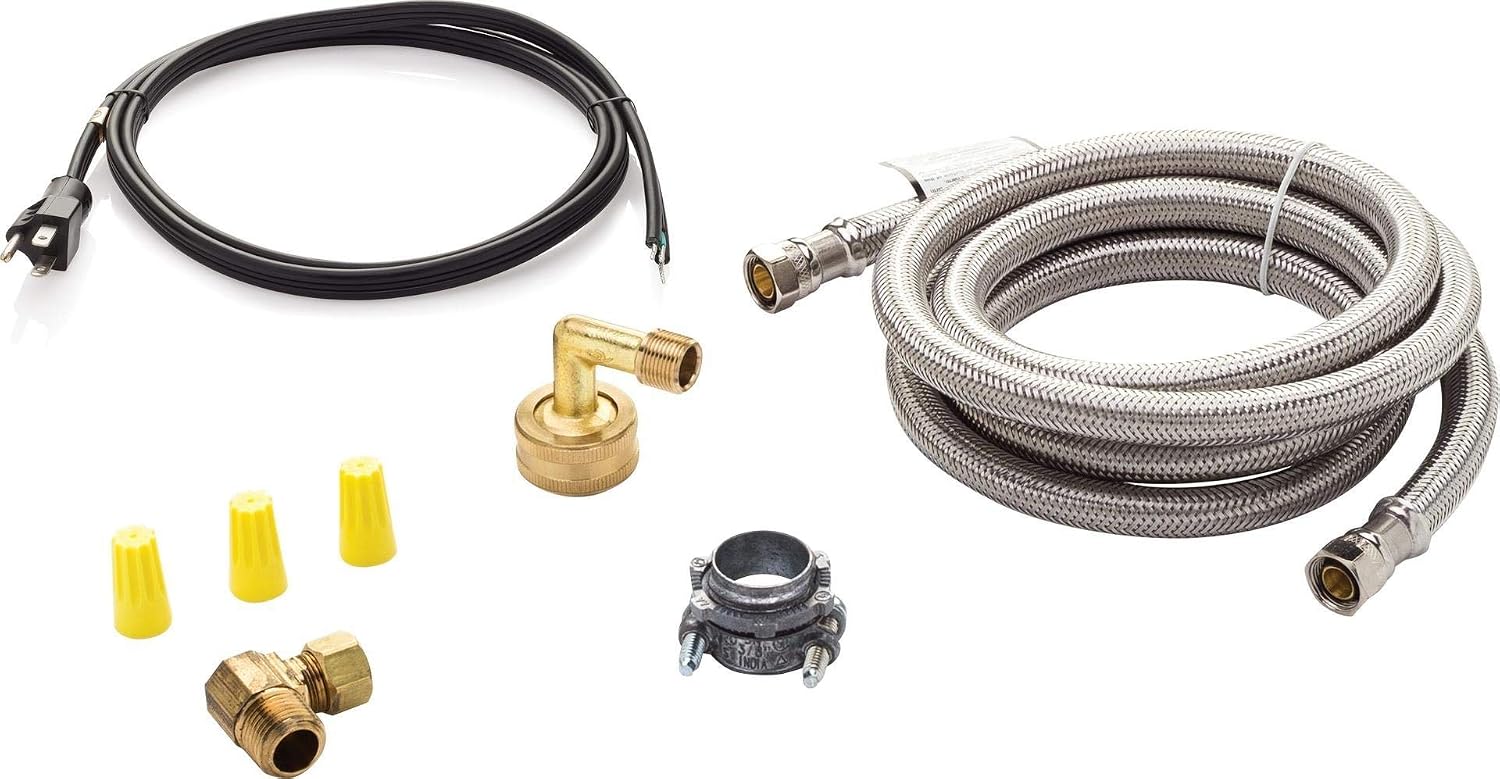

This accessory package by Superior Brands comes ready for you to setup and install your dishwasher with 6 ft. braided stainless steel waterline hose, 6 ft straight power cord, a romex connector, 3 medium wire nuts, 3/4″ elbow, 3/8″ elbow and a worm gear clamp.

These premium W10195417 Lower Dishwasher Wheels are used in a dishwasher to easily roll the rack back and forth on the rails. To repair, open the dishwasher door and pull out the lower dish rack. Next, push the tab from both sides and it should pop out. To install the new wheel assembly, place it on the rack and make sure the caps overlap the wire from the inside before you clip it in place by pushing the wheel. Slide the rack back in the washer to make sure it is installed correctly.
Designed to fit specific Whirlpool manufactured dishwasher models including for Kenmore, Kitchenaid.

Specification:
material: plastic
Color: brown
Quantity: 4 pieces

This is a genuine replacement part. The W10712394 number and name for the Following item is: Whirlpool W10712394 adjuster kit

Works with all models listed:

Kenmore
66512762K312, 66512763K312, 66512769K312, 66512772K312, 66512773K312, 66512774K312, 66512776K312, 66512779K312, 66512813K313, 66513202N410, 66513202N411, 66513203N410, 66513203N411, 66513204N410, 66513204N411, 66513209N410, 66513209N411, 6513222N410, 66513222N412, 66513223N410, 66513223N412, 66513229N410, 66513229N413, 6513262K110, 66513262K111, 66513262K112, 66513262K113, 66513262K114, 66513263K110, 66513263K111, 66513263K112, 66513263K113, 66513263K114, 66513269K110, 66513269K111, 66513269K112, 66513269K113, 66513269K114, 66513362K110, 66513362K111, 66513362K112, 66513363K110, 66513363K111, 66513363K112, 66513369K110, 66513369K111, 66513369K112, 66513402N410, 66513403N410, 66513409N410, 66513493N410, 66513493N411, 66513499N410, 6513499N411, 66513542N410, 66513543N410, 66513549N410, 66513692N410, 66513693N410, 66513699N410, 66514542N711, 66514543N711, 66514545N711, 66514549N711, 66514572N610, 66514572N611, 66514572N612, 66514573N610, 66514573N611, 66514573N612, 66514579N610, 66514579N611, 66514579N612, 66514752N512, 66514753N512, 66514754N512, 66514759N512

Whirlpool
7WDT950SAYM0, 7WDT950SAYM1, 7WDT950SAYM2, 7WDT950SAYM3, WDT780SAEM1, WDT780SAEM2, WDT790SLYB0, WDT790SLYM0, WDT790SLYM1, WDT790SLYM2, WDT790SLYM3, WDT790SLYW0, WDT790SLYW2, WDT910SAYE0, WDT910SAYE1, WDT910SAYE2, WDT910SAYE3, WDT910SAYH0, WDT910SAYH1, WDT910SAYH2, WDT910SAYH3, WDT910SAYM0, WDT910SAYM1, WDT910SAYM2, WDT910SAYM3, WDT910SSYB0, WDT910SSYB1, WDT910SSYB2, WDT910SSYB3, WDT910SSYM0, WDT910SSYM1, WDT910SSYM2, WDT910SSYM3, WDT910SSYW0, WDT910SSYW1, WDT910SSYW2, WDT910SSYW3, WDT970SAHB0, WDT970SAHW0, WDT975SAHV0, WDT975SAHZ0

Kitchen Aid
KDFE454CSS4, KUDC10FBBL0, KUDC10FBSS0, KUDC10FBWH0, KUDC10IBBL0, KUDC10IBSS0, KUDC10IBWH0, KUDE20FBBL0, KUDE20FBBL1, KUDE20FBSS0, KUDE20FBSS1, KUDE20FBWH0, KUDE20FBWH1

Comparable to OEM Parts include WP8269145, 8269145, EA393134, AP3039168, PS393134, 830941, AH393134 and many more.

INSTRUCTIONS:
1) Turn off power to your dishwasher in breaker box (ABSOLUTELY CRITICAL TO AVOID SHOCK) and water supply to your dishwasher.
2) Open the dishwasher front door and remove screws holding dishwasher to counter.
3) Close the dishwasher door and pull the dishwasher out from the counter to see the existing brackets if they exist. You may need to lower the dishwasher by adjusting the levelling feet.
4) Remove existing brackets by bending metal tab using pliers and pulling them out from dishwasher frame.
5) Insert the rear end of the new bracket into the dishwasher frame and then bend the tabs on the end of each bracket upwards to secure them in place and to prevent the brackets from sliding back out. Slide the dishwasher back beneath the counter.
6) With the front door open, drive a screw through each bracket into the countertop above.
ALL SET!

WHAT YOU GET:
2 x Dishwasher Mounting Brackets
2 x Mounting Screws

100% CUSTOMER SATISFACTION
Feel free to contact us if you have any questions or problems with the item sold by Geengle.

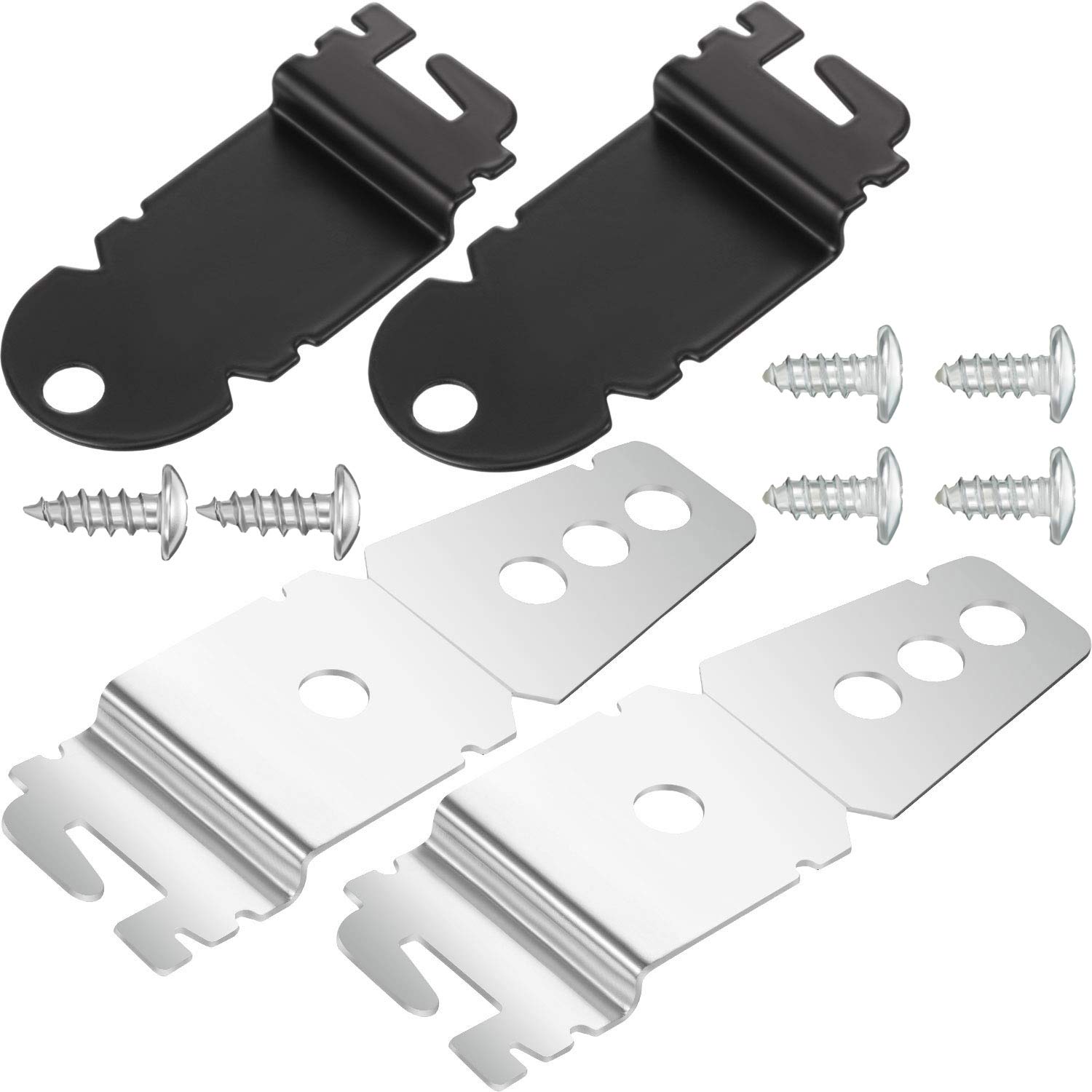

2 Packs 8212560 dishwasher side brackets and 4 packs installation screws and 2 packs 8269145 dishwasher upper mounting brackets and 2 packs installation screws

8212560 Dishwasher side mounting bracket:
Material: metal
Quantity: 2 packs mounting brackets and 4 pieces install screws
Replace for part No.: 1201084, AP3953705
Color: black

8269145 Dishwasher upper mounting bracket:
Material: metal
Quantity: 2 packs upper mounting brackets and 2 packs install screws
Replace for part No.: WP8269145, WP8269145VP
Color: sliver

Practical to use:
Compatible with various most top name brands such as KitchenAid, Kenmore, Maytag, Amana, Jenn-Air, Estate, Magic Chef, Inglis, Roper.

Features:
Good quality and can be applied for a very long time.

Package includes:
2 x 8212560 Dishwasher side mounting bracket
4 x Installation screws
2 x 8269145 Dishwasher upper mounting bracket
2 x Silver installation screws

Warmly note:
Not original parts, the mention of any related models and brands above is only for purposes of demonstrating compatibility.
